双贴面板材表层划槽。

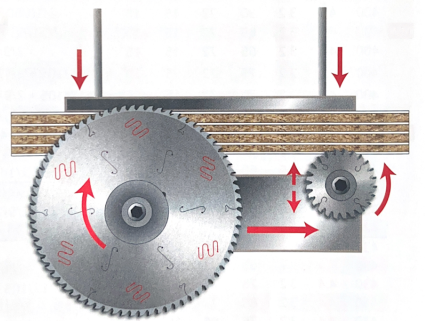

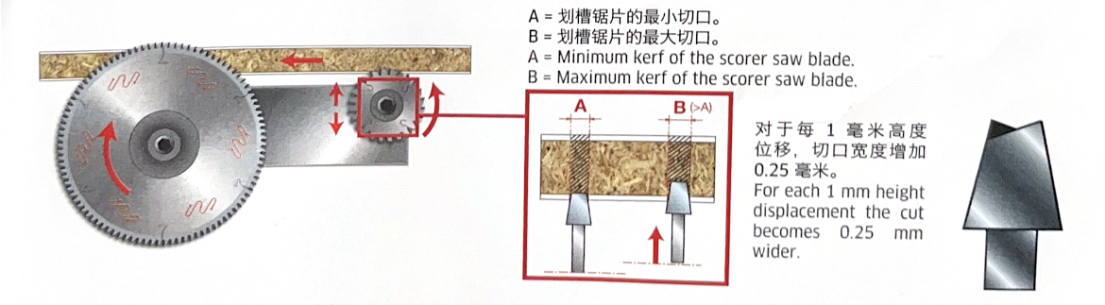

机器：卧式裁板锯，可根据需要对划槽锯片进行纵向调节

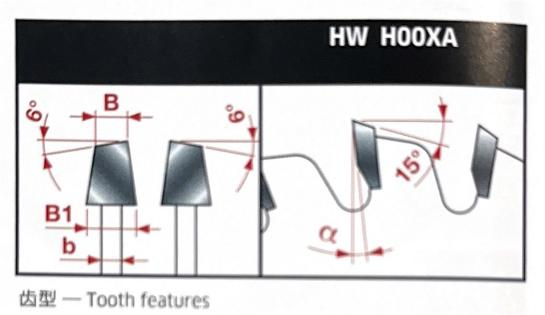

齿形：6度交叉斜齿
适合切削材料：双贴面刨花板或中纤板
D | B | b | d | Z | α | NL | 机器 |
毫米 | 毫米 | 毫米 | 毫米 |
|
| NL | Machines |
mm | mm | mm | mm |
|
|
|
|
150 | 3.1-4.3 | 2.2 | 30 | 36 | 8° |
| SCM |
150 | 3.4-4.7 | 2.2 | 30 | 36 | 8° |
| SCM |
150 | 4.3-5.6 | 3.2 | 30 | 36 | 8° |
| SCM,Verry |
150 | 4.3-5.6 | 3.2 | 45 | 36 | 8° |
| SCM,Holzma,Homag,Haisung Woodworking Machinery |
150 | 4.5-5.8 | 3.0 | 30 | 36 | 8° |
| SCM |
150 | 4.5-5.8 | 3.0 | 45 | 36 | 8° |
| SCM |
150 | 3.1-4.3 | 2.2 | 30 | 36 | 8° |
| SCM |
150 | 3.4-4.7 | 2.2 | 30 | 36 | 8° |
| SCM |
150 | 4.3-5.6 | 3.2 | 30 | 36 | 8° |
| SCM,Verry |
D | B | b | d | Z | α | NL | 机器 |
毫米 | 毫米 | 毫米 | 毫米 |
|
| NL | Machines |
mm | mm | mm | mm |
|
|
|
|
150 | 4.3-5.6 | 3.2 | 45 | 36 | 8° |
| SCM,Holzma,Homag,Haisung Woodworking Machinery |
150 | 4.5-5.8 | 3.0 | 30 | 36 | 8° |
| SCM |
150 | 4.5-5.8 | 3.0 | 45 | 36 | 8° |
| SCM |
160 | 3.1-4.3 | 2.2 | 20 | 36 | 8° |
| Langzauner |
160 | 3.4-4.6 | 2.2 | 25.4 | 36 | 8° |
|
|
160 | 4.3-5.5 | 3.2 | 25.4 | 36 | 8° |
|
|
160 | 4.3-5.5 | 3.2 | 30 | 36 | 8° |
| Langzauner |
160 | 4.3-5.5 | 3.2 | 45 | 36 | 8° | 3/11/70 | Giben |
160 | 4.3-5.5 | 3.2 | 55 | 36 | 8° | 3/6/84+3/7/66 | Gabbiani-SCM |
160 | 4.3-5.5 | 3.2 | 60 | 36 | 8° | 3/7/80 |
|
160 | 4.5-5.7 | 3.0 | 45 | 36 | 8° | 3/11/70 | Giben |
160 | 4.5-5.7 | 3.0 | 55 | 36 | 8° | 3/7/66+3/9/72 | Gabbiani |
175 | 4.3-5.5 | 3.2 | 75 | 36 | 8° |
| Wonpoong |
180 | 3.1-4.3 | 2.2 | 16 | 42 | 8° | 1/6/33 | Scheer |
180 | 3.4-4.6 | 2.2 | 25.4 | 36 | 8° |
|
|
180 | 4.3-5.5 | 3.2 | 20 | 28 | 8° |
| Schelling-Anthon |
180 | 4.3-5.5 | 3.2 | 30 | 28 | 8° | 2/7/42+2/10/60 | Panhans-Holzer |
180 | 4.3-5.5 | 3.2 | 20 | 36 | 8° |
| Schelling-Anthon |
180 | 4.3-5.5 | 3.2 | 30 | 36 | 8° | 2/7/42+2/10/60 | Holzher,Nanxing,KDT |
180 | 4.3-5.5 | 3.2 | 45 | 36 | 8° |
| Holzma |
180 | 4.3-5.5 | 3.2 | 50 | 36 | 8° | 3/13/80 | Giben |
180 | 4.5-5.7 | 3.0 | 20 | 36 | 8° |
| Schelling-Anthon |
180 | 4.7-5.9 | 3.5 | 45 | 36 | 8° |
| Holzma |
180 | 5.1-6.3 | 3.5 | 55 | 36 | 8° | 3/7/66 | Gabbiani |
180 | 5.7-6.9 | 4.0 | 20 | 36 | 8° |
| Anthon-Holzma |
200 | 4.3-5.5 | 3.2 | 20 | 36 | 8° | 2/11/66+2/10/60+2/9/62 | Schellin |
200 | 4.3-5.5 | 3.2 | 22 | 36 | 8° |
|
|
200 | 4.3-5.5 | 3.2 | 30 | 36 | 8° | 2/9/60+2/10/60 | Scheer |
200 | 4.3-5.5 | 3.2 | 45 | 36 | 8° |
| Holzma,Hyundai Sangi |
200 | 4.3-5.5 | 3.2 | 50 | 36 | 8° | 2/7/80+3/13/80 | Giben,KDT |
200 | 4.3-5.5 | 3.2 | 65 | 36 | 8° | 2/9/100+2/9/110 | Gabbiani |
200 | 4.3-5.5 | 3.2 | 80 | 36 | 8° | 2/14/110 | Gabbiani |
200 | 4.3-5.5 | 3.2 | 75 | 36 | 8° |
| Hyundai Sangi |
D | B | b | d | Z | α | NL | 机器 |
毫米 | 毫米 | 毫米 | 毫米 |
|
| NL | Machines |
mm | mm | mm | mm |
|
|
|
|
200 | 4.5-5.7 | 3.0 | 22 | 36 | 8° |
|
|
200 | 4.5-5.7 | 3.0 | 65 | 36 | 8° | 2/8.5/100 | Gabbiani |
200 | 4.7-5.9 | 3.5 | 20 | 36 | 8° | 2/11/66 |
|
200 | 4.7-5.9 | 3.5 | 22 | 36 | 8° |
|
|
200 | 4.7-5.9 | 3.5 | 30 | 36 | 8° | 2/9/60 | Scheer |
200 | 4.7-5.9 | 3.5 | 45 | 36 | 8° |
| Holzma |
200 | 4.7-5.9 | 3.5 | 65 | 36 | 8° | 2/9/100+2/9/110 | Selco |
200 | 5.4-6.6 | 3.8 | 20 | 36 | 8° |
|
|
200 | 5.7-6.9 | 4.0 | 45 | 36 | 8° |
| Holzma |
200 | 5.7-6.9 | 3.5 | 65 | 36 | 8° | 2/9/110 |
|
200 | 6.1-7.3 | 4.2 | 20 | 36 | 8° | 2/11/66 | Schelling,Scheer |
215 | 4.3-5.5 | 3.2 | 50 | 42 | 8° | 2/7/80+3/15/80 | Giben |
215 | 4.5-5.7 | 3.2 | 50 | 42 | 8° | 3/15/80 | Giben |
220 | 6.3-7.5 | 4.4 | 20 | 36 | 8° | 2/11/66 | Schelling |
250 | 3.1-4.3 | 2.2 | 30 | 54 | 8° |
|
|
250 | 4.3-5.5 | 3.2 | 50 | 48 | 8° | 3/13/80 | Giben |
250 | 4.3-5.5 | 3.2 | 30 | 48 | 8° | 2/10/60 |
|
280 | 4.3-5.5 | 3.2 | 30 | 48 | 6° | 2/10/60 | Panhans |
300 | 4.3-5.5 | 3.0 | 65 | 48 | 6° | 2/9/100+2/9+110 | Selco |
300 | 4.3-5.5 | 3.2 | 30 | 48 | 6° | 2/11/75+2/13/94+2/11/73 | Schelling |
300 | 4.3-5.5 | 3.5 | 50 | 48 | 12° | 3/15/80 | Giben |
300 | 4.3-5.5 | 3.2 | 65 | 72 | 12° | 2/9/110+2/9/100 | Selco |
300 | 4.3-5.5 | 3.2 | 80 | 72 | 12° | 2/14/110 |
|
300 | 4.7-5.9 | 3.5 | 65 | 48 | 6° | 2/9/110 | Selco |
